The 4K-KVM fiber optic extender also named as 4K KVM to fiber converter,which consists of 1pcs of KVM Fiber transmitter and 1 pcs of KVM fiber receiver.It can extend a 10G high-speed non-compressed 4K/2K@30Hz HDMI signal and USB(keyboard and mouse) to 10-40KM through a duplex single mode fiber cable,which is a real uncompressed, non-delayed transparent transmission product.
Features :
1,10G fiber optic transmission , uncompressed real transparent transmission without delay.
2, support HDMI 1.4 and 3D video signal transmission, support 720p / 60Hz, 1080i / 60Hz, 1080p / 30Hz, 1080p / 60Hz, 1080p / 120Hz, etc., the maximum resolution: 4096 × 2160 @ 30HZ
3. It can reverse the EDID and support HDCP content protection.
4, support USB1.0 keyboard and mouse transmission or 1ch RS232
5, support 7.1 channel PCM surround sound and compressed audio
6, compatible with DVI signal transmission, support HDMI interface hot plug, low power consumption, plug and play, strong compatibility
7, multi-mode fiber 300 meters, single-mode fiber 10 ~ 40KM long-distance transmission.
8. The aluminum alloy casing is suitable for industrial harsh environments such as extremely high temperature and extremely low temperature;
9, full surface mount technology, high reliability;
10, no software settings, support plug and play function, support hot swap;
Application range
various large-scale multimedia high-definition display,
information release and news center,
traffic guidance and information display systems,
outdoor large-screen display systems,
large-scale stage display and entertainment centers,
Television program transmission system, live broadcast, high definition video conference system, multimedia conferences, military command and exercises
Public security, safe city monitoring system
Highway security and charging system
Industrial control (airport, chemical, steel, petroleum, railway, water conservancy, mining, etc.)
Military command system, military surveillance (warehouse, frontier defence, guard, national defence, etc.)
Gymnasium (live video, audio transmission)
Casinos, examination room real-time monitoring
Product specification:
| Performance: |
| Compliance | DVI v1.0, HDMI v1.4, HDCP v1.4 |
| Maximum Pixel Clock Frequency | Supports pixel clock rates up to 340 MHz |
| Maximum Video Bit Rate | Supports digital signal bit rates up to 3.4 Gbps per color |
| Supported Color Depth | Supports 1080p resolution with up to 16 bits/pixel |
| Digital Audio Support | Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio |
| Supported HDTV Formats | Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats |
| Supported PC Resolutions | Supports resolutions up to 4096x2160 / 24p, 30p |
| Optical: |
| Optical Transmitter | Laser Source: 1310nm FP/1270nm DFB / 1550nm DFB |
| Optical Receiver | PIN Photo Diode O/E Converter |
| Fiber Cable Type / Max. Length | 50/125μ OM3 MM fiber/ 300 meters
9/125μ SM optical fiber / 10KM~40KM |
| Connections: |
| HDMI Input / HDMI Output | 19-pin female HDMI connectors |
| Optical Input / Output | 2x female LC optical connectors |
| Mechanical: |
| Construction | Extruded Aluminum enclosure with black anodized finish |
| Dimensions | 104 mm x 104 mm x 28 mm |
| Weight | 700g per pair |
| Environmental: |
| Operating Temperature | 0° to +50° C |
| Storage Temperature | -20° to +70° C |
| Humidity (storage / operating) | 10% to 90% (non-condensing) |
| Power Requirements: |
| Power Source | Both Tx and Rx units must be powered using the supplied external AC power adapters |
| External AC Power Adapter | Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A |
| Maximum Power Consumption | TX Unit: 3.5 watts RX Unit: 3.5 watts |
USB interface:
| TX | 1,connect to PC/ HDMI source |
| RX | 2, connect to Cable keyboard or mouse |
4K HDMI fiber extenders Connection diagram:
|
|

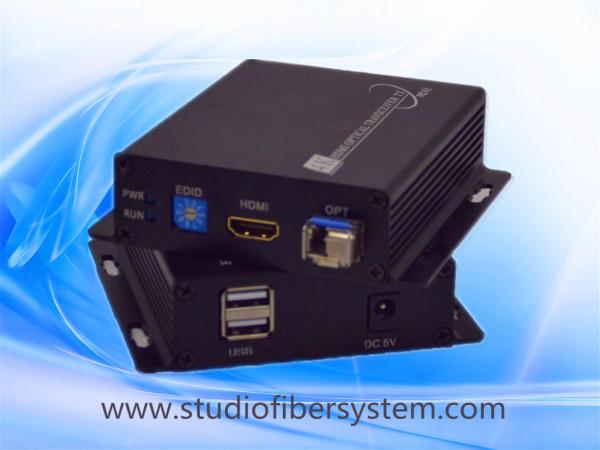

4K KVM fiber optic extender for 1ch 4K/2K HDMI&USB keyboard&mouse signal or RS232 over dual SM fiber for CCTV system Images
|
